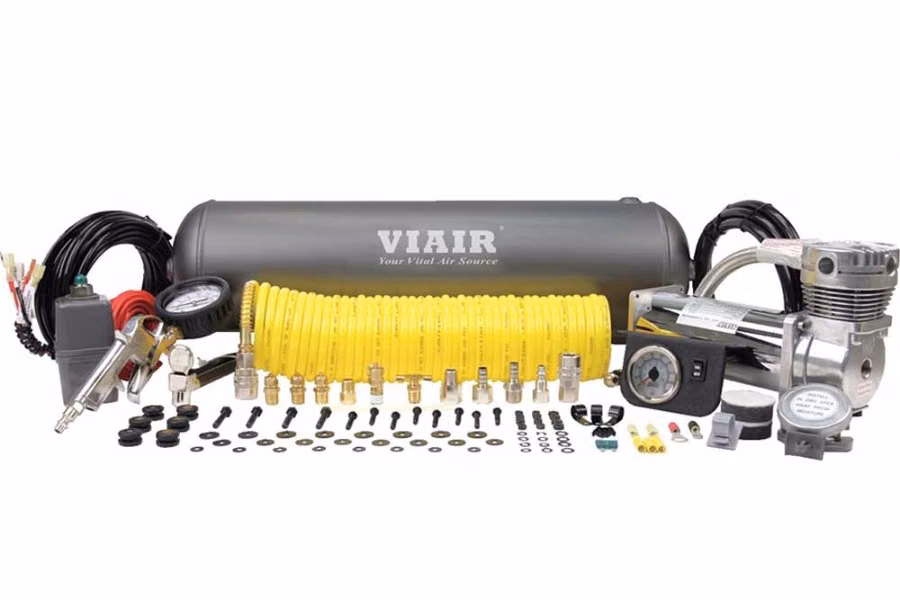

Viair’s Ultra Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 480C compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.Please Note: Pressure Switch w/Relay (PNs 90110, 90111, 90113, 90118) is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure.Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8″ IS 10-11 ft/lbs. Recommended torque for 1/4″ and 3/8″ is 16-18 ft/lbs. 2.5 Gallon 200 PSI VIAIR Air Tank 480C Chrome VIAIR Air Compressor w/Thermal Overload Protector Tire Inflation Gun with 200 PSI Gauge Dash Panel Gauge with ON/OFF Switch 30 ft Coil Hose with Quick Connects Pressure Switch (165 PSI on, 200 PSI off) Reducer: 1/8″ (F) to 1/4″ (M) Reducer: 3/8″ (F) to 1/4″ (M) 1/4″ Quick Connect Stud (F) 1/4″ Quick Connect Coupler (F) 1/4″ 25 0 PSI Safety Valve 1/4″ Drain Cock (3) 1/4″ Compression Fittings 20 ft 12-Gauge Wire with Inline Fuse Holder 4″ Strip of Continuous Grommet Material Accessory Airline Electrical ConnectionsSpecifications: 12-Volt Permanent Magnetic Motor Duty Cycle: 100% @ 100 PSI Max. Working Pressure: 200 PSI Max. Amp Draw: 23 Amps Ingress Protection Rating: IP67 Old Part Number: VAOS
