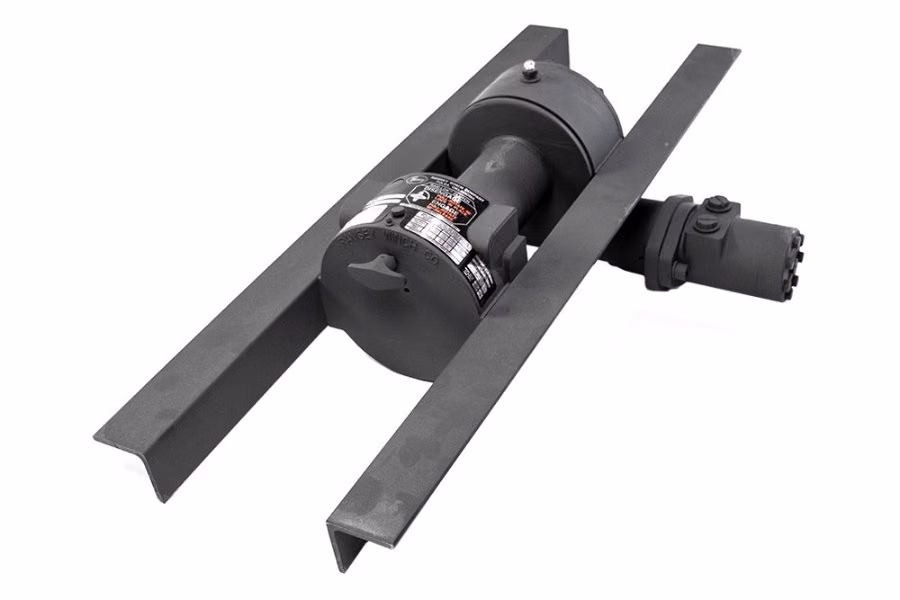

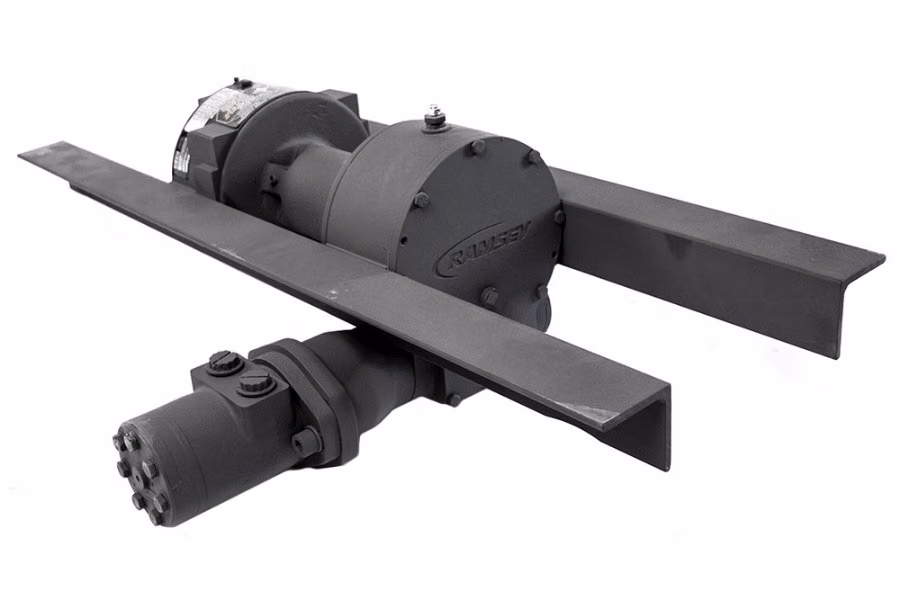

Rugged worm gearing results in faster line speeds that get you to your nextjob faster. These 8,000- and 10,000-lb. Hydraulic Industrial-Grade Winchesallow you to operate from driver side of truck and feature Ram-Lok clutch,which provides easy freespooling. Low mount in your truck bed with L-shapedmounting channels. Spool direction is counterclockwise (over the drum)rotation. Retracted height is 1,800 psi. Options: Series H234 features 3/8″ x140′ wire rope capacity and passenger side mount. Series H246Y features 3/8″ x75′ wire rope capacity and passenger side mount. Series H246 features 3/8″ x140′ wire rope capacity and passenger side or driver side mount. Ramsey Part Number: 124006 Model: HY-246R Line Pull: 8,000 lbs Clutch: Ram-Lok Mounting Configuration: Front Overwind Right Side/Rear Overwind Left Side Gear Ratio: 46:1 Motor Included: Yes Angles Included: Yes Drum Length: 6.175″+-/16″ Adjustable/Automatic Brake: No Compact Short Drum Recommended Cable: 3/8″ Meets SAE-J706 Made in the USA Winch Mount Configuration Applications General Industrial Mining & Construction Railroad Specialty Vehicle Towing & Recovery Towing & Recovery (Carrier) Towing & Recovery (Light Wrecker) Trailer Model HY-200 Specifications Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable) 1st Layer Line Speed: 12.6’/min / 3.8m/min Gear Ratio: 60:1 (HY-246 = 46:1) Weight w/o Cable: 80 lbs / 36 Kg Brake: “Optional auxiliary brake is available” Cable: None Drum Size (L x F x B): 6.31″ x 7.25″ x 3.50″ / 160.3mm x 184.2mm x 88.9mm Cable Capacity: 75′ / 22.9m Recommend Cable Size: 3/8″ / 9.5mm Hydraulic Pressure Required: 1,600 PSI (110 Bar) Hydraulic Flow Required: 15.0 GPM (57 LPM) Motor Size: 4.5 Cu. In. (74 cc) Additional Motor Options: Must Call Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style Clutch Control: Air, Manual
