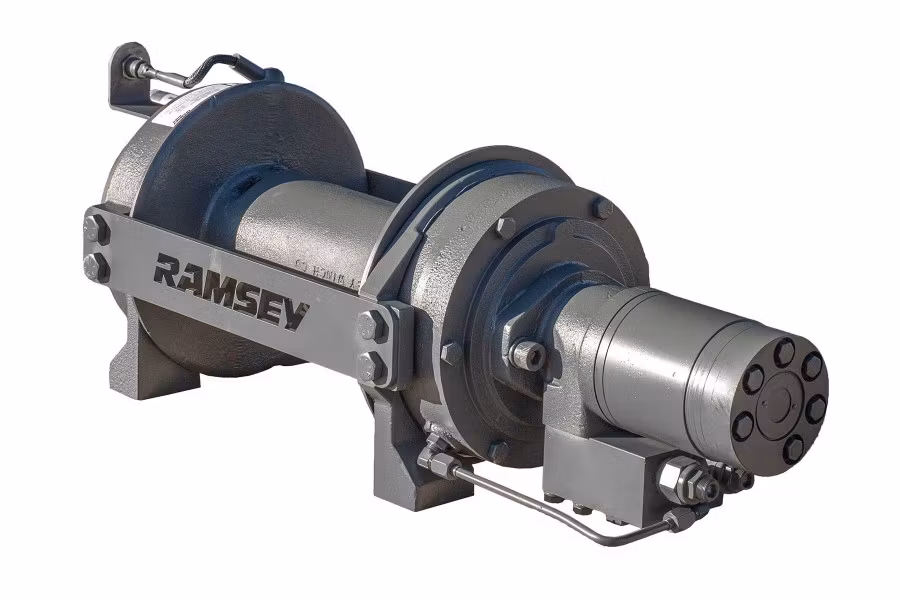

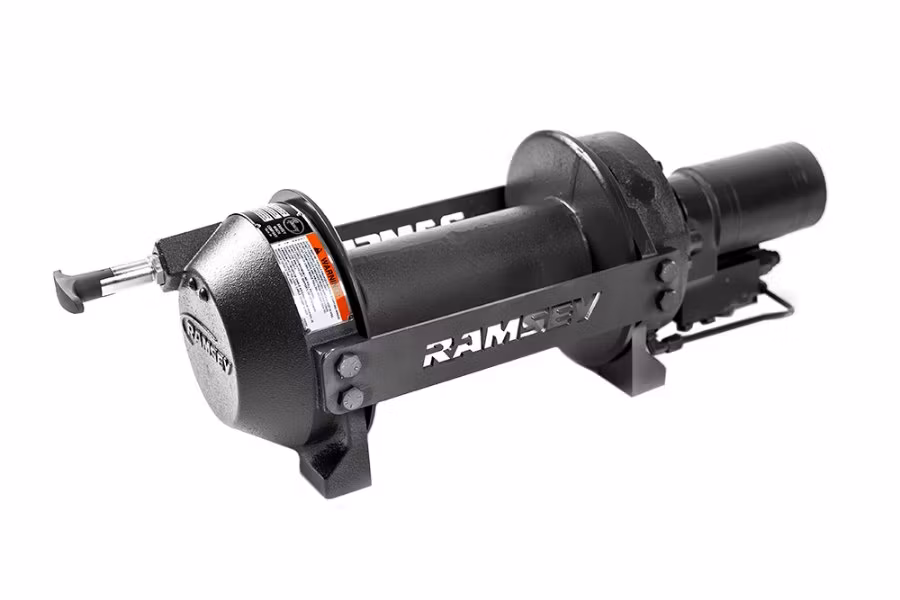

This Industrial-Grade Winch features a planetary gear for the fastest linespeeds available getting you out of hazardous traffic quicker. Winch has adisc brake for sure-load holding and a free spooling clutch on the driver’sside. Use with 9-3/4″ drum width and 7/16″ x 125′ rope capacity. Rated Line pull 12,000 lbs Standard Drum Recommended cable 7/16 Available with air shift (air shift does not include handle) Meets SAE J706 Made in the USA Applications General Industrial Mining & Construction Railroad Specialty Vehicle Towing & Recovery Towing & Recovery (Heavy Wrecker) Towing & Recovery (Medium Wrecker) Trailer Utility Specifications Rated Line Pull: 12,000 Lbs / 5,443 Kg (1st Layer of Cable) 1st Layer Line Speed: 32 Ft/Min / 9.7 M/Min Gear Ratio: 5.1:1 Weight w/o Cable: 110 Lbs / 50 Kg Brake: Yes Cable: None Drum Size (L x F x B): 9.75″ x 9.00″ x 3.94″ / 247.7mm x 228.6mm x 100.1mm Cable Capacity: 160 Ft / 48.8 M Recommend Cable Size: 7/16 In / 11.1 MM Hydraulic Pressure Required: 2,500 PSI (172 Bar) Hydraulic Flow Required: 15.0 GPM (57 LPM) Motor Size: 24.0 Cu. In. (393 cc) Additional Motor Options: None Clutch Type: Sliding Pin Clutch Control: Air, Manual
