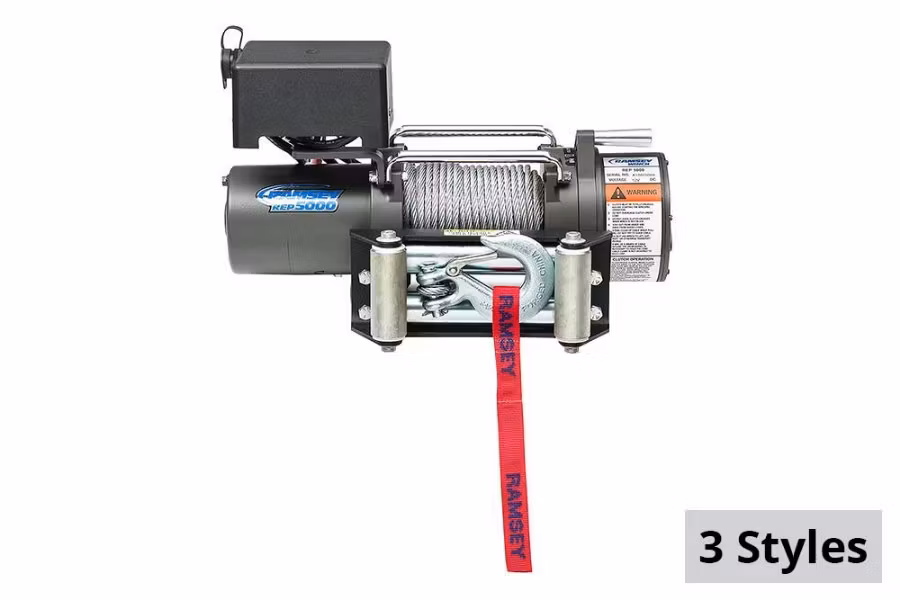

Ramsey REP 5000 with proven three-stage planetary gear system design for fast linespeed. Strong automatic load-holding brake for strength. Cam action clutchdisengages planetary gear system for free spooling. Available in 12V or 24Vwith 12′ Pendant. Cam action clutch disengages planetary gear system for free spooling Proven 3-stage planetary gear system design for fast line speed Motor and solenoids are grounded directly to battery Strong automatic load-holding brake for strength Weather resistant solenoid assembly 12 Ft. wire pendant remote 6 ft. (1,83 M) 2 gauge battery 4-way roller fairlead Limited lifetime warranty Made in the USAApplications Off-Road Specialty VehicleSpecifications Rated Line Pull: 5,000 lbs / 2,268 Kg (Based on first layer of cable) Gear Ratio: 294:1 Brake: Yes Cable: Includes Cable Drum Size (LxFxB): 5.5″ x 5.5″ x 2.5″ / 140mm x 140mm x 64mm Cable Capacity: 80′ / 24.4m Recommended Cable Size: 1/4″ / 6.4mm 1st Layer Line Speed: 39’/min / 11.9m/min Motor Output: 3.8 HP Motor Type: Series Wound Voltage: 12v / 24v Clutch Type: Cam Action Clutch Control: ManualStyle RW-110903: 12v with Hawse and 12′ Pendant RW-110904: 12v with 4-Roller Fairlead and 12′ Pendant RW-110906: 24v with 4-Roller Fairlead and 12′ Pendant
