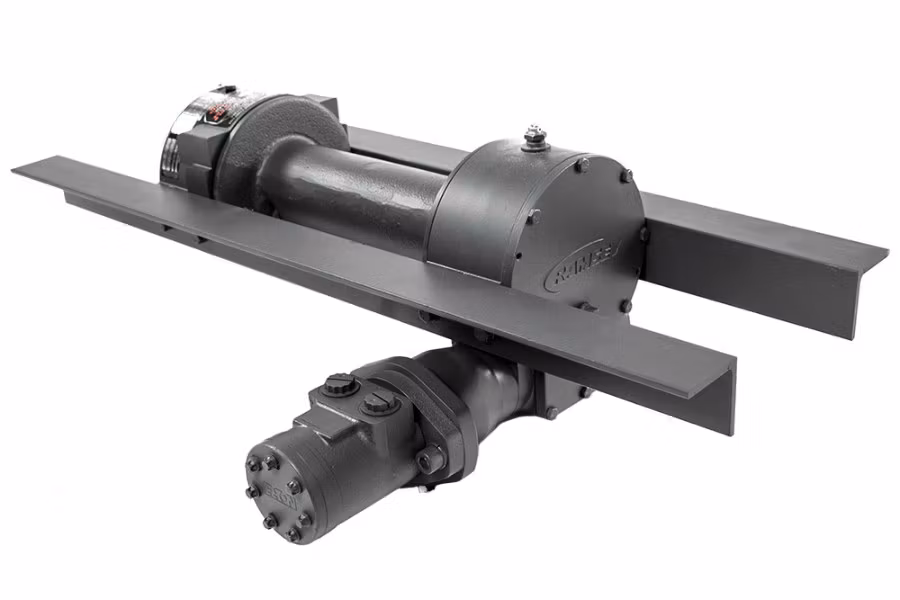

One of the most popular winches in the Towing & Recovery industry. These 8000lb. Ramsey winches are used on most tow trucks and car carriers. This makes itmore economical to replace your old winch rather than to repair it. Model: HD-234 Line Pull: 8,000 lbs Gear Ratio: 34:1 Drum Length: 11″+-/16″ Adjustable/Automatic Brake: No Fast Line Speed Recommended cable 3/8 Meets SAE-J706 Made in the USA Applications Replaces Chevron Car Carrier OEM Winches Replaces Jerr-Dan Car Carrier OEM Winches Replaces Century Car Carrier OEM Winches Replaces Vulcan Car Carrier OEM Winches Replaces Champion Car Carrier OEM Winches Replaces Challenger Car Carrier OEM Winches General Industrial Mining & Construction Railroad Specialty Vehicle Towing & Recovery Towing & Recovery (Carrier) Towing & Recovery (Light Wrecker) Trailer Model HD-234R Specifications Rated Line Pull: 8,000 lbs / 3,629 Kg (1st Layer of Cable) 1st Layer Line Speed: 28’/min / 8.5m/min Gear Ratio: 34:1 Weight w/o Cable: 110 lbs / 50 Kg Brake: “Optional auxiliary brake is available”, Yes – brake is self-locking (Includes auxiliary brake) Cable: None Drum Size (L x F x B): 11.31″ x 7.25″ x 3.50″ / 287.3mm x 184.2mm x 88.9mm Cable Capacity: 140′ / 42.7m Recommend Cable Size: 3/8″ / 9.5mm Hydraulic Pressure Required: 2,375 PSI (164 Bar) Hydraulic Flow Required: 15.0 GPM (57 LPM) Motor Size: 3.6 Cu. In. (59 cc) Clutch Type: Blocked, RAM-LOK?, DOW-LOK?, Lever Style Clutch Control: Air, Manual, Electric
