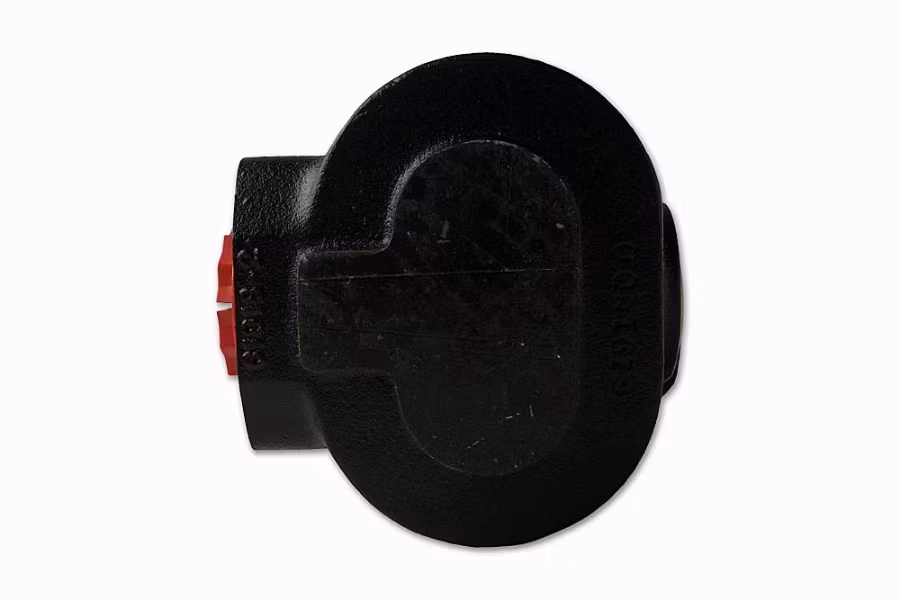

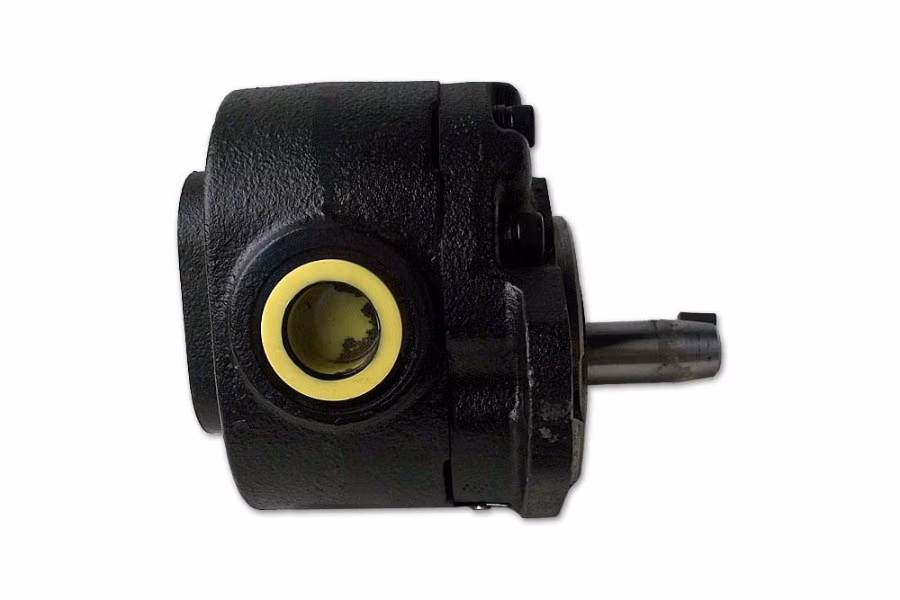

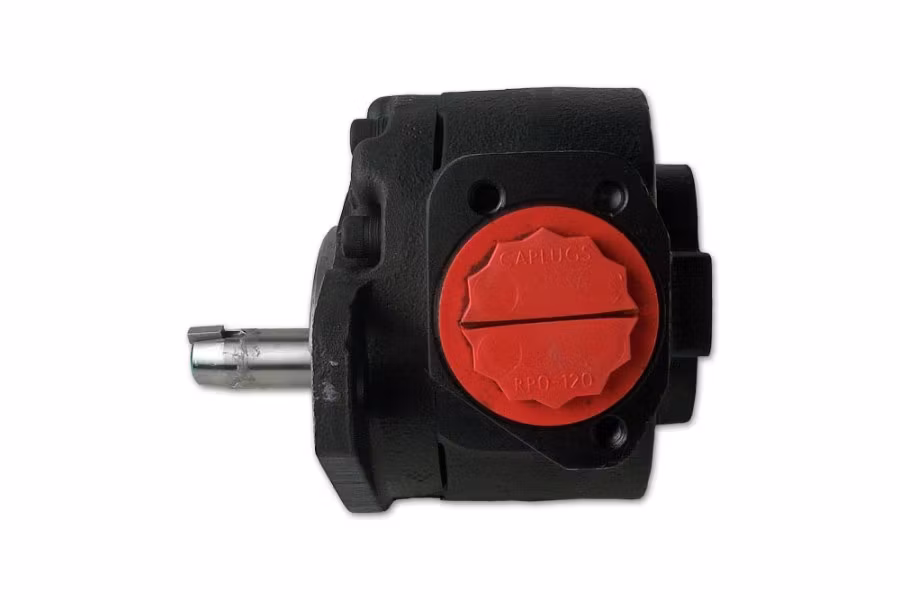

This is a Parker 17 Gallon Per Minute Hydraulic Pump at 1600 RPMs. This is aParker PH14 “A” Mount Pump with a clockwise rotation. This pump features sideports. This pump has a 7/8″ tapered shaft with a woodruff keyway. This pumpwill work with Chevron Wreckers, Compatible with DewEze Products. This is the Pump OnlyNOTE TO INSTALLER Clutches will need a short burnishing period to generate the rated torque. This is a process of cycling the clutch to slightly wear the friction surfaces. This allows full contact and maximum magnetic attraction required for rated torque (or more).BURNISHING-TO AVOID BURNING OR HEAT DISTORTION, THE FOLLOWING PROCEDURE IS RECOMMENDED:After clutch is installed, run at 1000-1200 RPM. Cycle the clutch on/off at the rate of 1 seconds on – 1 seconds off for a minimum of 30-40 cycles. Mount: A GPM: 17 Port: Side Shaft: 3/4″ Taper Bolt: 5/16-24 x 1 Rotation: CW Material: Iron Model Number: 304-9110-004 CI: 1.94 Suction H: 1- 1/4″ Suction F: 20mb Pressure H: 3/4″ Pressure F: 12mb PSI R1: 1800 PSI R2: 2600 Seal Kit: 722077 Shaft Key: 702071 Thrust Plate: 722070 Series: PH14 Used in the following kits: 700479, 700485, 700509, 700514, 700530, 700532, 700533, 700534, 700536, 700539, 700547, 700550, 700555, 700556, 700562, 700568, 700572, 700582, 700587, 700590, 700592, 700599, 700601, 700604, 700607, 700609, 700610, 700611, 700612
